All Sky Ground Antenna
Designed for wide coverage and efficient satellite tracking—offering low-cost, low-power performance with gimballed feeds and spherical reflector technology built for remote deployment.

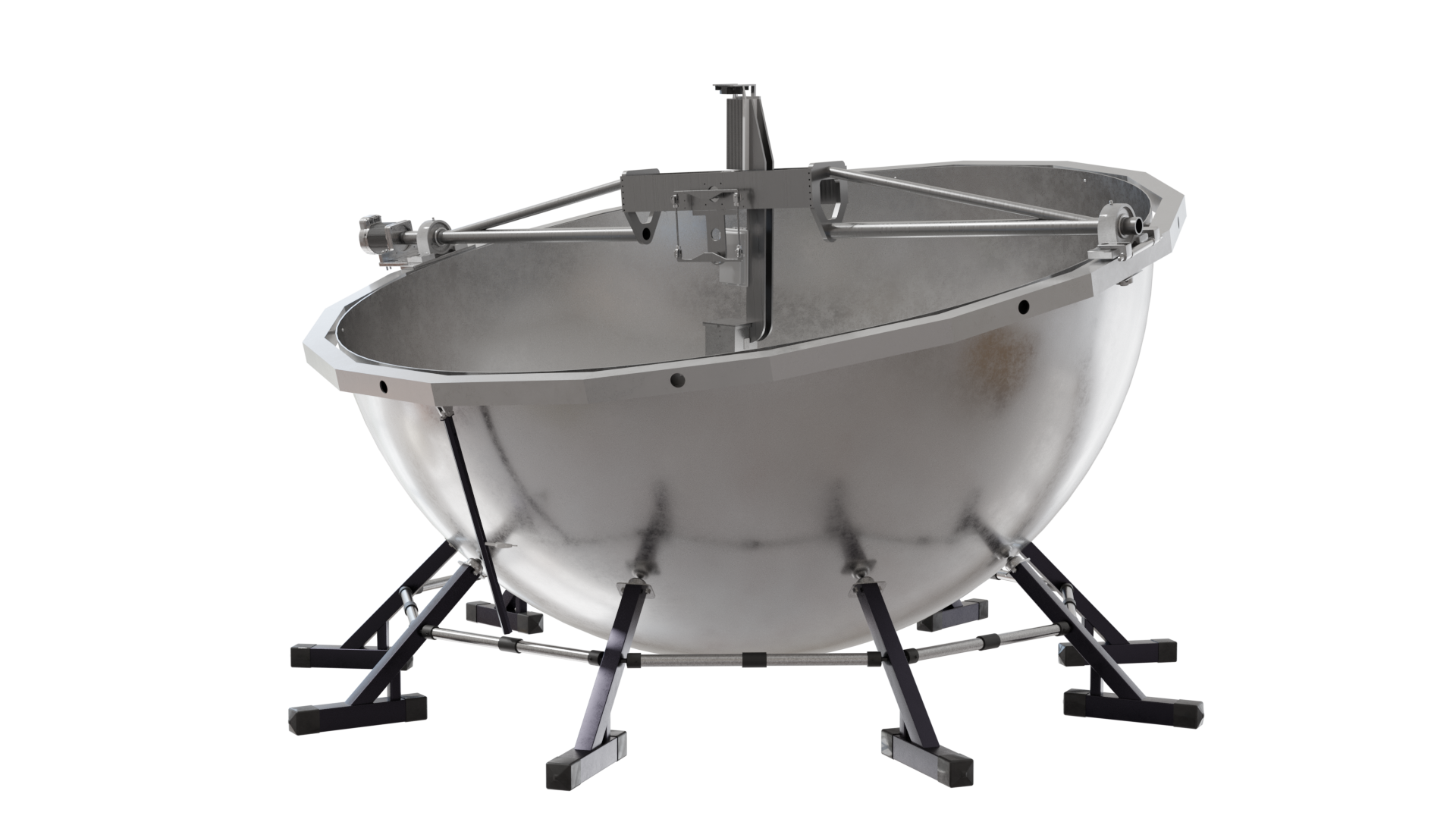

All Sky Antenna
Engineered for make-before-break tracking of satellite constellations across equatorial LEO, MEO, and GEO orbits, FreeFall’s all-sky antenna system uses a dual-feed design that replicates the performance of two parabolic antennas with a single spherical reflector. By gimbaling only the feed, the system minimizes mechanical complexity and power consumption—making it an ideal solution for cellular backhaul in remote, resource-constrained environments.
Specifications
| Metric | As Built |
|---|---|
| Pointing Accuracy | 0.1 deg |
| G/T (Min Elevation) | 6–7 dB/K |
| EIRP | 34 dBW* |
| Polarization | LHCP/RHCP (Switchable) |
| X-pol discrimination | < 21 dB |
| Elevation Scan Range | 120 deg (no gain roll off) |
| Azimuth Scan Range | 360 deg |
| Deployed Aperture Diameter | 200 cm |
| Power | 210 W |
| TRL | 6 |
Configurations

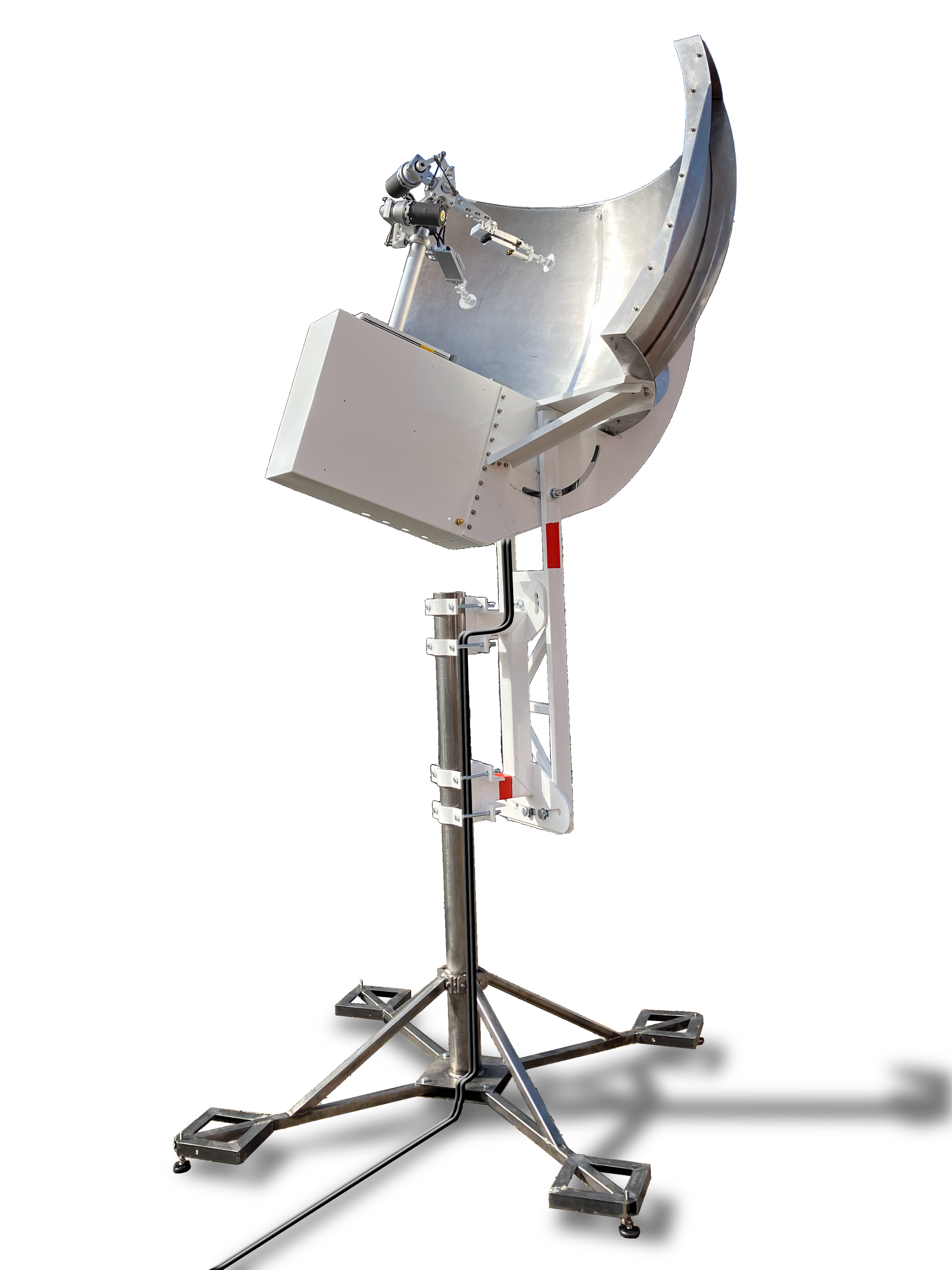

Single Aperture Terminal
Engineered for make-before-break tracking of satellite constellations across equatorial LEO, MEO, and GEO orbits, FreeFall’s single aperture terminal uses a dual-feed design that replicates the performance of two parabolic antennas with a single spherical reflector. By gimbaling only the feed, the system minimizes mechanical complexity and power consumption—making it an ideal solution for cellular backhaul in remote, resource-constrained environments
Specifications
| Metric | As Built |
|---|---|
| Pointing Accuracy | 0.1 deg |
| G/T (Min Elevation) | 18 dB/K |
| EIRP | 52 dBW* |
| Polarization | LHCP/RHCP (Switchable) |
| X-pol discrimination | < 25 dB |
| Elevation Scan Range | 22 deg (no gain roll off) |
| Azimuth Scan Range | 105 deg (no gain roll off) |
| Deployed Aperture Diameter | 195 cm |
| Power | 175 W |
| TRL | 9 |
